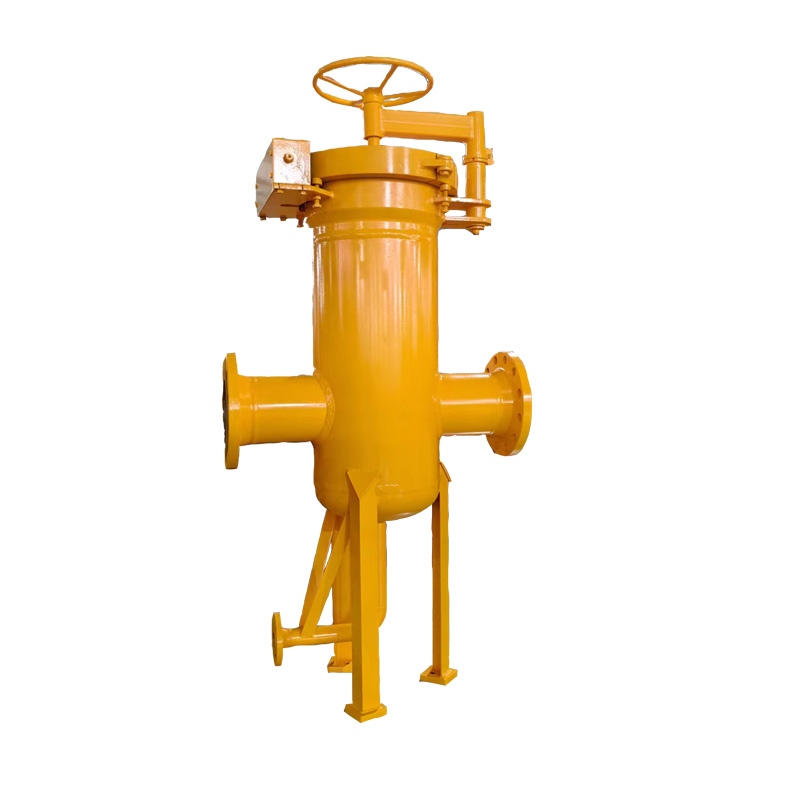

The product has features including large filter area, small pressure loss, long service life, high efficiency and easy use & installation & maintenance. The product includes shaft flange type and angular flange type.
The filter can be equipped with a differential pressure gauge as required to display the blockage of the filter element so that user can know whether to clean the filter element. The filter element materials include stainless steel mesh, paper, nylon mesh, etc. The filter accuracy is up to 5μm.
Pressure level (MPa): 1.6, 2.5, 4.0 and 6.4
Operating temperature: -40℃~+60℃
Allowable pressure loss: 0.025MPa
Caliber series: DN25, DN50, DN80, DN100, DN150, DN200, DN300 and DN400
|
Gasfilter Flow and Size Comparison Table |
||||||||||||||
|
Caliber |
Pressure rating
|
Operating pressure（Mpa） |
Flow （Nm³/h） |
Cylinder diameter |
Discharge caliber |
Inlet and outlet Connecting pipe
OD ÍL ÍT |
Inlet and outlet Connecting pipe
OD ÍL ÍT |
Cylinder length
|
Structure size (mm) |
Filter element model |
||||
|
A |
B |
C |
D |
H |
||||||||||
|
DN50 |
PN16 |
0.8 |
1000 |
Φ159x7 |
DN25 |
Φ57x225(130)x4 |
Φ32 x 85 x 3.5 |
370 |
390 |
230 |
125 |
145 |
610 |
G1.0 |
|
1.4 |
1300 |
|||||||||||||
|
PN25 |
1.8 |
1600 |
Φ159x7
|
Φ 57x190 (95)x4 |
Φ32 x 90 x 3.5 |
330 |
410 |
230 |
125 |
165 |
640 |
|||
|
2.3 |
2300 |
|||||||||||||
|
PN40 |
2.9 |
2800 |
Φ 159x7 |
Φ57 x 200(106)x4 |
Φ 32x95x3.5 |
330 |
430 |
230 |
125 |
175 |
650 |
|||
|
3.6 |
3500 |
|||||||||||||
|
PN63 |
4.5 |
4500 |
Φ 159x7 |
Φ 70x110(90)x11 |
Φ 45x75x9.5 |
330 |
430 |
230 |
125 |
185 |
685 |
|||
|
5.6 |
5500 |
|||||||||||||
|
DN80 |
PN16 |
0.8 |
1600 |
Φ 219x7 |
DN25
|
Φ89x285(150)x7 |
Φ32x115x3.5 |
500 |
480 |
320 |
140 |
185 |
790 |
G2.0 |
|
1.4 |
2500 |
|||||||||||||
|
PN25 |
1.8 |
4000 |
Φ 219x7
|
Φ89x245(106)x7 |
Φ 32 x 90 x 3.5 |
450 |
510 |
320 |
140 |
200 |
820 |
|||
|
2.3 |
4800 |
|||||||||||||
|
PN40 |
2.9 |
6000 |
Φ219x7 |
Φ89x250(106)x7 |
Φ 32 x 95 x 3.5 |
450 |
520 |
320 |
140 |
205 |
830 |
|||
|
3.6 |
7000 |
|||||||||||||
|
PN63 |
4.5 |
8000 |
Φ219x7 |
Φ l00x150(110)x10.5 |
Φ 45 x 90 x 9.5 |
450 |
|
320 |
140 |
215 |
850 |
|||
|
5.6 |
12000 |
560 |
||||||||||||
|
DN100 |
PN16 |
0.8 |
3500 |
Φ273x8 |
DN25 |
Φ108x320(150)x5 |
Φ 32 x 90 x 3.5 |
500 |
530 |
380 |
180 |
180 |
850 |
G2.5 |
|
1.4 |
4900 |
|||||||||||||
|
PN25 |
1.8 |
6800 |
Φ273x8
|
Φ108x300(125)x5 |
Φ 32x100x3.5 |
500 |
610 |
380 |
180 |
200 |
920 |
|||
|
2.3 |
8200 |
|||||||||||||
|
PN40 |
2.9 |
9800 |
Φ 273x8 |
Φ108x305(135)x5 |
Φ32x115x3.5 |
500 |
630 |
380 |
180 |
200 |
920 |
|||
|
3.6 |
12000 |
|||||||||||||
|
PN63 |
4.5 |
13500 |
Φ273x8 |
Φ120x170 (140)x11 |
Φ 45x100x9.5 |
500 |
640 |
380 |
200 |
240 |
1000 |
|||
|
5.6 |
17000 |
|||||||||||||
|
Gasfilter flow and size comparison table |
||||||||||||
|
Caliber |
Pressure rating |
Cylinder length |
Structure size (mm) |
Filter element model |
||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
H1 |
||||
|
DN150 |
PN16 |
600 |
650 |
450 |
180 |
200 |
220 |
280 |
480 |
1000 |
1200 |
G3.0 |
|
PN25 |
600 |
700 |
450 |
180 |
200 |
220 |
280 |
480 |
1000 |
1200 |
||
|
PN40 |
600 |
740 |
450 |
200 |
200 |
220 |
280 |
500 |
1150 |
1200 |
||
|
PN63 |
600 |
765 |
450 |
200 |
200 |
220 |
280 |
500 |
1150 |
1200 |
||
|
DN200 |
PN16 |
800 |
820 |
550 |
240 |
250 |
275 |
385 |
650 |
1600 |
1600 |
G4.0 |
|
PN25 |
800 |
830 |
550 |
240 |
250 |
275 |
385 |
650 |
1600 |
1600 |
||
|
PN40 |
800 |
850 |
550 |
250 |
250 |
275 |
385 |
650 |
1600 |
1600 |
||
|
PN63 |
800 |
900 |
550 |
250 |
250 |
275 |
385 |
650 |
1600 |
1600 |
||
|
|
|
|
||||||||||
|
Filter element model: G1.0 Filter element model: G2.0 Filter element model: G2.5 Filter element model: G3.0 Filter element model: G4.0 Filter element model: G5.0 Filter element model: G6.0 Design pressure PN is less than or equal to 1.6Mpa, with the adoption of GB/T9119-2010 flange |
Filter element specifications: Ф96/Ф50x165 Filter element specifications: Ф165/Ф86x270 Filter element specifications: Ф200/Ф110x283 Filter element specifications: Ф252/Ф138x320 Filter element specifications: Ф299/Ф186x415 Filter element specifications: Ф390/Ф246x470 Filter element specifications: Ф475/Ф320x625 Design pressure PN is less than or equal to 1.6Mpa, with the adoption of HG/T20592-2009 flange
|
Filter element surface area:0.14m2 Filter element surface area:0.51m2 Filter element surface area:0.72m2 Filter element surface area:1.2m2 Filter element surface area:1.7m2 Filter element surface area:2.3m2 Filter element surface area:4.2m2 |
||||||||||
