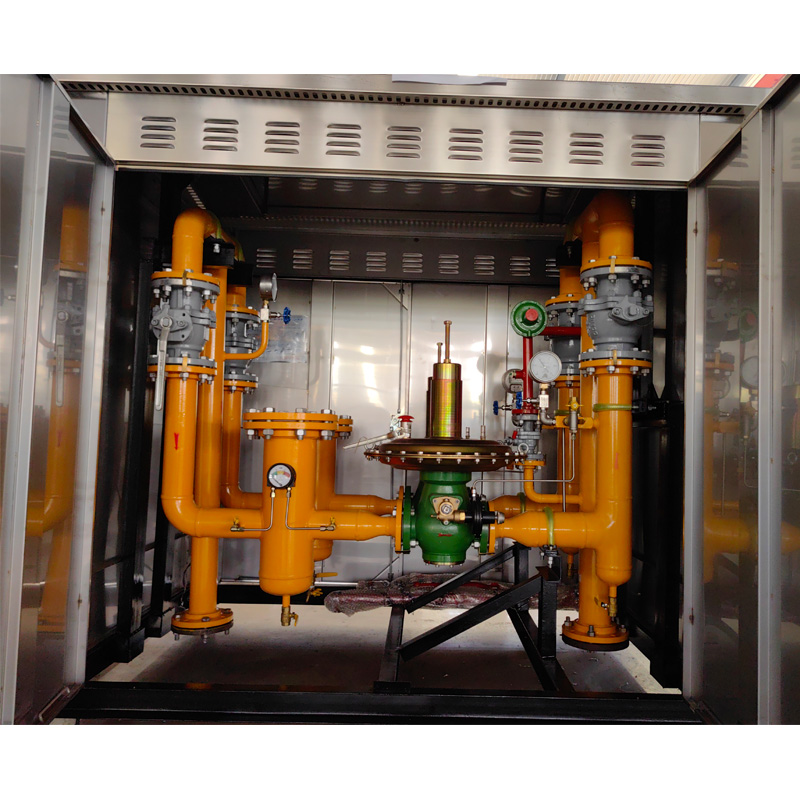

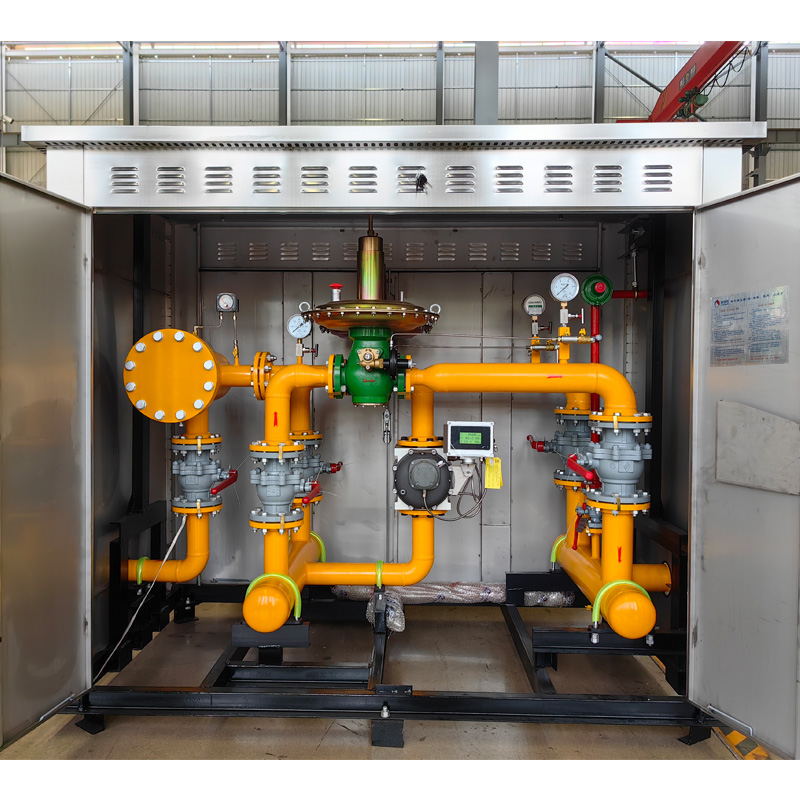

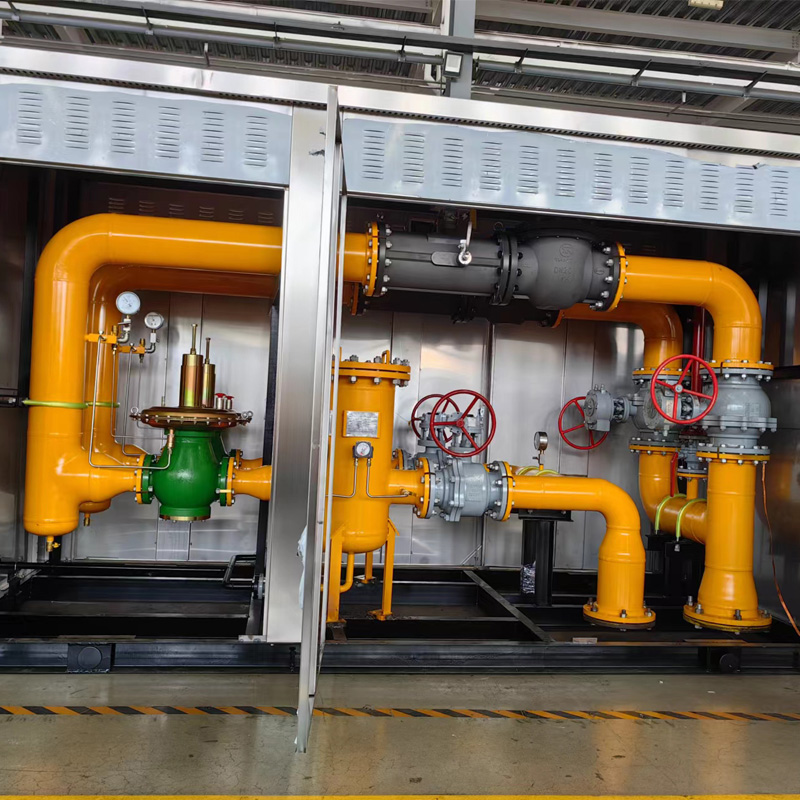

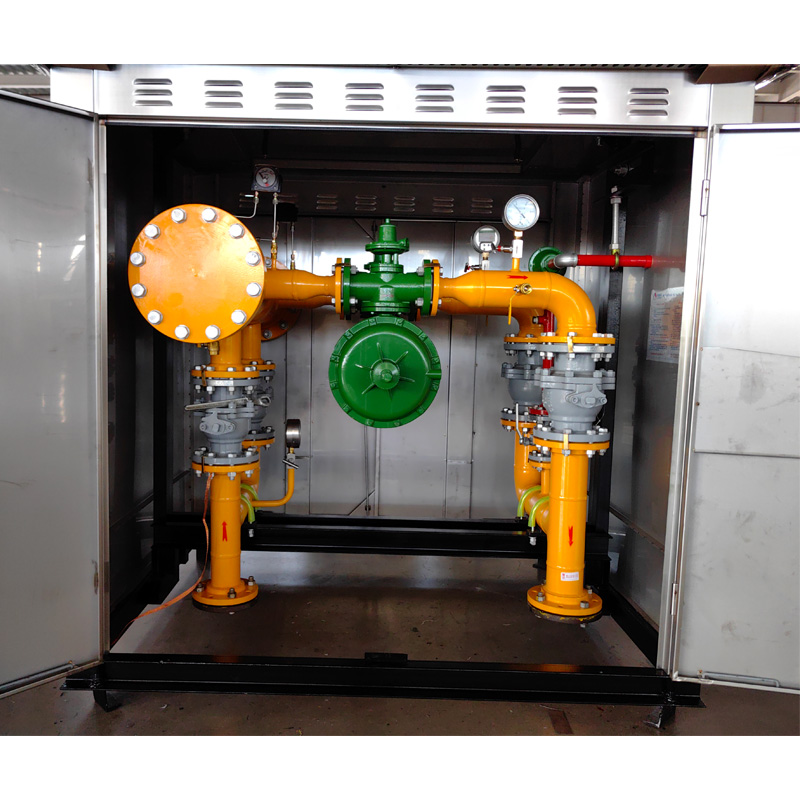

Adjustable gas compression (measurement) box (cabinet, station)as a gas transmission pipeline pressure device, for residential areas, public service users,direct tired gas equipment, gas boilcrs, indusirial fumaccs, etc.
By the gas filter, adjusi the gas pressure dvice. a safety cut-off valve, safety valve, cast steel ball valve or butterfly valve, ineter, main pipeline and control of pipeline components.
- ♦Can choose to configure the flow meter and pressure gauge.
- ♦Seleciable configuration data acquisition system
- ♦According to the user demand surge equipment insulation, warming measures.
-
Main structural form
2road pressure-f 1 road bypass
2road pressure no road bypass
1road pressure-f 1 road bypass
1road pressure no road bypass
Main technical parametersP1 Jnlet pressure range:0.02-4.0MPa
P2-Out let pressure range: l-5KPa 5-30KPa 30-150KPa
Pa Pressure regulating precision: ≤ ±5%
Pb Closing perssure: 1.2-1.25
Operating temperature: -40°C~60°C
Product features - ♦Sets of prcssure (measurement), safety, safety relief filter cut off in one.
- ♦The equipment has been tested strictly, so that the gas pressure and gas pressure and gas pressure and gas distribution are stable, safe and reliable.
- ♦The structure of the equipment is reasonable, and the design is beautiful, and the area of the equipment is in accordance with the requirements of environmental protection.
- ♦Good scalability, can be added to the user's demand for gas alarm, data acquisition and temperature warming system.
- ♦Equipment installation, Debugging is simple, easy to use, easy to maintain.
- ♦Reasonable structure, perfect function, high reliability, good coordination of the system.
- ♦Box material: Steel spray box, stainless steel box, color steel plate insulation box.can satisfy the customer requirements in different environment.
- ♦Use medium: Natural gas, artificial gas, liquefied petroleum gas, etc.
-
Main Technical Parameters
Model
P, (Mpa)
P, (Kpa)
Flow
Q(Nm3/h)
Optional function
Main purpose
RX-100/*A、B、C、D、E
0.05-4
3~30
100
1、Metering
2、Automatic Spread
3、Security alarm
Can be used for regional relating.
gasboier industral furnace and
direct combustion equipment
RX-200/*A、B、C、D、E
200
……
……
RX-900/*A、B、C、D、E
900
RX-1000/*A、B、C、D、E
1000
RX-1200/*A、B、C、D、E
1200
……
……
RX-4600/*A、B、C、D、E
4600
RX-5000/*A、B、C、D、E
5000
RX-6000/*A、B、C、D、E
6000
……
……
Note: The list of models are the basic configuration.if you need to change the configuration.should be marked in the order
-
Model
P, (Mpa)
P, (Kpa)
Flow
Q (Nm3/h)
Optional function
Main purpose
RX-100/*A、B、C、D、E
0.05~1.6
0.02~1.0
100
1、Metering
2、Automatic Spread
3、Security alarm
Can be used for natural gas well station, large and medium city gate station, and small town pressure.
RX-200/*A、B、C、D、E
200
RX-300/*A、B、C、D、E
300
……
……
RX-800/*A、B、C、D、E
800
RX-900/*A、B、C、D、E
900
RX-1000/*A、B、C、D、E
1000
RX-1500/*A、B、C、D、E
1500
RX-1600/*A、B、C、D、E
1600
……
……
RX-9000/*A、B、C、D、E
9000
RX-9500/*A、B、C、D、E
9500
RX-10000/*A、B、C、D、E
10000
RX-12000/*A、B、C、D、E
12000
RX-14000/*A、B、C、D、E
14000
……
……
