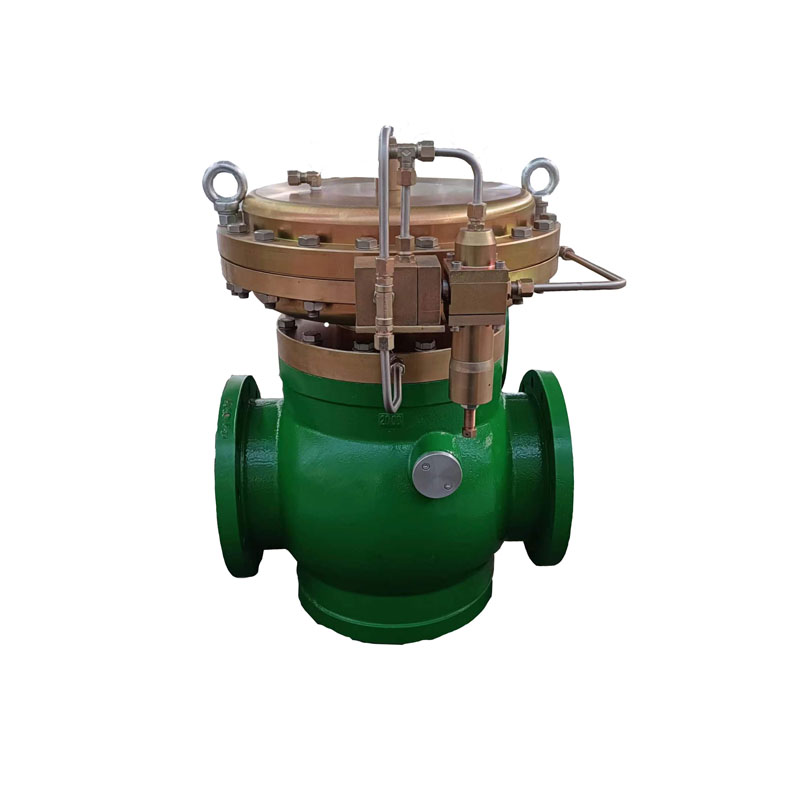

This series of products can be used for city gas gate stations.regional pressure regulating station.industrial furnaces.boilers and large— scale industrial gas users transmission and distribution network automatic system pressure.
Stable performance,safe and reliable, strong adaptability, large flow capacity, set the pressure and safety cut into one.the pressure setting is simple.easy operation and maintenance. Compact structure, can be online maintenance.
Natural gas, coal gas.liquefied petroleum gas, gas and other non corrosive gases.
Production standards:GB27790-2020 City Gas Pressure Regulators
Inlet pressure: P1: 0.2-4.0MPa
PaExport pressure: P2:0.05-2.5MPa
Regulator accuracy level: AC5
Close pressure level: SG10
Working temperature: -20℃～+60℃
Series Specifications: DN50、DN80、DN100、DN150、DN200
Connection mode: PN1.6、PN2.5、PN4.0MPa HG/T20592-2009
|
Model |
Engineering Pass Through (mm) |
L (mm) |
D (mm) |
L (mm) |
|
RTJ-50/*DKQ |
DN50 |
254 |
330 |
430 |
|
RTJ-80/*DKQ |
DN80 |
298 |
360 |
450 |
|
RTJ-100/*DKQ |
DN100 |
352 |
468 |
470 |
|
RTJ-150/*DKQ |
DN150 |
451 |
470 |
500 |
|
RTJ-200/*DKQ |
DN200 |
543 |
518 |
530 |
|
Inlet pressure P1 (MPa) |
Export pressure P2 (MPa) |
Model |
||||
|
RTJ-50/*DKQ |
RTJ-80/*DKQ |
RTJ-100/*DKQ |
RTJ-150/*DKQ |
RTJ-200/*DKQ |
||
|
0.2 |
0.05-0.1 |
1675 |
2089 |
2596 |
4670 |
6050 |
|
0.4 |
0.05 |
2041 |
2890 |
4070 |
7482 |
9792 |
|
0.1 |
1815 |
2420 |
3630 |
6155 |
8450 |
|
|
0.2 |
1465 |
2265 |
3085 |
5100 |
7260 |
|
|
0.3 |
1240 |
1975 |
2530 |
4330 |
6270 |
|
|
0.8 |
0.1 |
2900 |
3360 |
7810 |
11100 |
14880 |
|
0.2 |
2671 |
3150 |
6670 |
10030 |
13800 |
|
|
0.4 |
2590 |
2952 |
5760 |
9540 |
11820 |
|
|
0.6 |
2450 |
2790 |
5250 |
9072 |
10740 |
|
|
1.0 |
0.1 |
4840 |
5400 |
11300 |
17680 |
24180 |
|
0.3 |
4390 |
5012 |
10600 |
16250 |
21700 |
|
|
0.5 |
4299 |
4640 |
9980 |
14560 |
20280 |
|
|
0.7 |
3968 |
4100 |
9435 |
13650 |
15400 |
|
|
1.6 |
0.2 |
6800 |
9420 |
13970 |
21980 |
27720 |
|
0.4 |
6090 |
8369 |
12540 |
20860 |
26180 |
|
|
0.8 |
5680 |
7510 |
11690 |
19882 |
25056 |
|
|
1.0 |
5110 |
6810 |
10942 |
19180 |
23935 |
|
|
2.5 |
0.3 |
9450 |
11770 |
17250 |
27900 |
36900 |
|
0.7 |
8790 |
10470 |
16435 |
26700 |
34220 |
|
|
1.6 |
7900 |
9420 |
15179 |
25220 |
31810 |
|
|
4.0 |
0.2-0.8 |
12400 |
30400 |
43200 |
85600 |
96000 |
|
1.0 |
12000 |
29000 |
42000 |
84000 |
93000 |
|
|
1.6 |
11800 |
28000 |
40800 |
82000 |
90000 |
|
|
2.5 |
11600 |
27000 |
39600 |
80000 |
88000 |
|
